G10 Epoxy Fiberglass Laminate Sheet

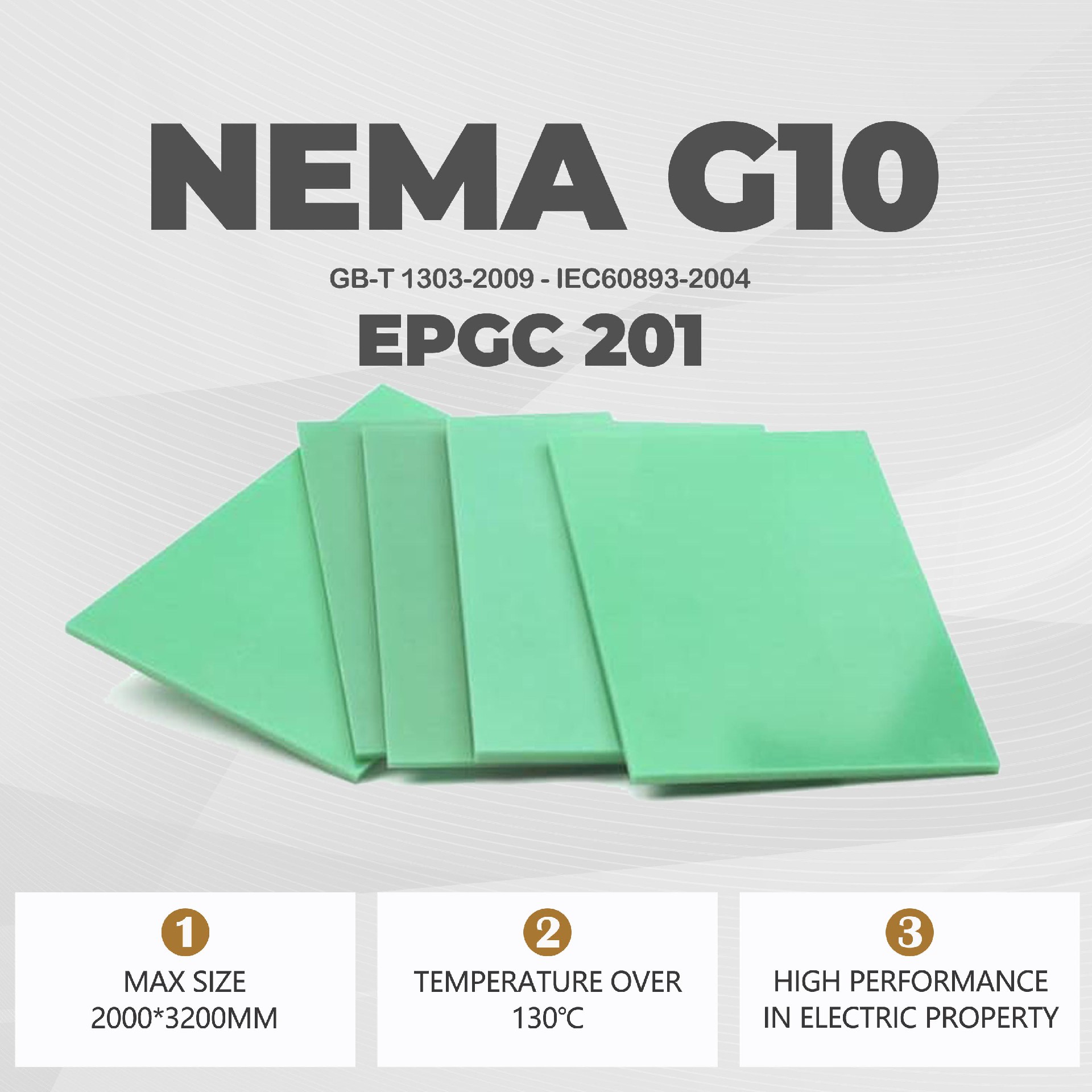

G10 Epoxy Fiberglass Laminate Sheet is a kind of laminated sheet formed through heat pressing after the electric industry fiberglass cloth dips into epoxy resin.Suitable as the mechanical, electric and electronic insulation structural components which are used under homoeothermy and middle temperatures with a certain mechanical performance and electric performance.
This product is made of glass fiber cloth for electronics impregnated with brominated epoxy resin and heated and pressurized. It has high mechanical properties, dielectric properties and flame retardant properties, good heat resistance and moisture resistance, and good machinability;It fully meets the requirements of EU RHOS standards and SGS standards, and is widely exported to Southeast Asia, the EU, India and other regions.
Download
Specification
Specification Overview | |
Name | G10 Epoxy Fiberglass Laminate Sheet |
Base Material | Epoxy Resin + Fiber Glass |
Color | GreenYellowRedBlackWhite,etc Color can be customized according to customer requirements |
Thickness | 0.1mm – 300mm |
Dimensions | Regular size are 1020x1220mm,1020x2040mm,1220x2440mm, 1220 x 3100mm, 1600 x 3200mm, 1800 x 3200mm, 2000 x 3200mm Special size, we can produce and cut according to customer’s requirements. |
Density | 1.97g/cm3 – 2.2 g/cm3 |
OEM | Accepted |
Description
Indicator Name | Unit | Indicator Value | |
Density | g/ cm³ | 1 . 8 – 2 . 0 | |
Water Absorption | % | ≤ 0 . 5 | |
Vertical layer bending strength | MPa | ≥ 340 | |
Vertical layer compression strength | MPa | ≥ 350 | |
Parallel layer impact strength (simple beam method notch) | K J/ m² | ≥ 37 | |
Parallel layer shear strength | MPa | ≥ 34 | |
Tensile Strength | MPa | ≥ 300 | |
Vertical layer direction electric strength (90 ℃± 2 ℃ in oil) | 1mm | KV/ mm | ≥ 14 . 2 |
2mm | ≥ 11 . 8 | ||
3mm | ≥ 10 . 2 | ||
Parallel layer direction breakdown voltage (90 ℃± 2 ℃ in oil) | KV | ≥ 40 | |
Dielectric loss factor (50 Hz) | – | ≤ 0 . 04 | |
Insulation resistance | Normality | Ω | ≥ 5 . 0 × 101 2 |
After immersed in water for 24 h | ≥ 5 . 0 × 101 0 | ||
Flammability (UL-94) | Level | - | |
Application Scenarios
It is widely used in products which requiring high-performance electronic insulation, such as FPC reinforcement boards, PCB drilling pads, glass fiber mesons, potentiometer carbon film printed glass fiber boards, precision star gears (wafer grinding), precision test plates, Electrical (electrical) equipment insulation stay spacers, insulation backing plates, transformer insulation plates, motor insulation parts, grinding gears, electronic switch insulation plates, etc.
